22.1040 | Stäubli Electrical Connectors

2 mm plug, solder connection, 0.5 mm², 22.1040

Order No.: 08F202
EAN: 4099889663082
MPN:
22.1040
LS205-S

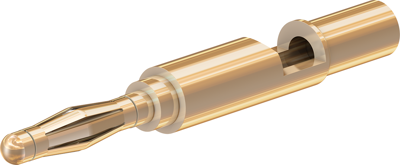

22.1040 Stäubli Electrical Connectors Laboratory Connectors Image 1
22.1040 Stäubli Electrical Connectors Laboratory Connectors Image 2
22.1040 Stäubli Electrical Connectors Laboratory Connectors Image 3
Image may differ
Unit Price (€ / pc.)
1.4518 € *
Available: 550 pcs.
Total Price:
1.45 € *
Price list
Quantity
Price per unit*
1 pcs.
1.4518 €
10 pcs.
1.3090 €
100 pcs.
1.2257 €
500 pcs.
1.1305 €
1000 pcs.
1.0591 €
*incl. VAT plus shipping costs
Subject to prior sale

Plugs, 2.0, mm, type MC LS205-S.

With spring-loaded contact lamella made of gold-plated brass; Solder connection Rated voltage: 30 VAC/60 VDC. Rated current: max. 10 A. Rated cross-section: 0.5 mm².

Type: LS205–S, plug pin

Technical specifications
Filter Property Value
diameter 2 mm
Rated current 10 A
contact surface gold-plated
Cable cross-section 0.5 mm²
Version plug
Connection solder connection

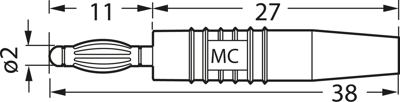

Length 38 mm
Touch safe No
Rated Voltage 30 VAC/60 VDC
Logistics
Property Value
Customs tariff number 85389099
Country of origin DE
Compliance
Property Value
Date of RoHS guidelines 3/31/15
SVHC free No
RoHS conform Yes
Substance description Lead
