22.1009 | Stäubli Electrical Connectors
2 mm plug, solder connection, 0.5 mm², 22.1009
Unit Price (€ / pc.)
1.2376 € *
Available: 7,377 pcs.
Total Price:
1.24 € *
Price list
Quantity
Price per unit*
1 pcs.
1.2376 €
10 pcs.
1.1186 €
100 pcs.
1.0472 €
500 pcs.
0.9520 €
1000 pcs.
0.9044 €
*incl. VAT plus shipping costs
Subject to prior sale

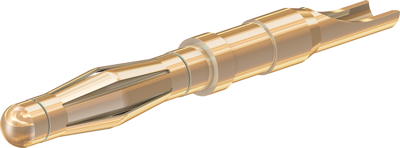

2 mm Plug, 22.1009, Stäubli Electrical Connectors
In-line Ø 2 mm plug with spring-loaded Multilam for self-assembly of test leads.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | plug | |
| diameter | 2 mm | |
| Connection | solder connection | |
| contact surface | gold-plated | |
| Cable cross-section | 0.5 mm² | |
| Rated Voltage | 30 VAC/60 VDC | |
| Rated current | 10 A | |
| Touch safe | No | |
| Length | 27 mm |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CH |
| Customs tariff number | 85389099 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | No |
| Substance description | Lead |
| Date of RoHS guidelines | 3/31/15 |
