61.7663-10028 | Stäubli Electrical Connectors

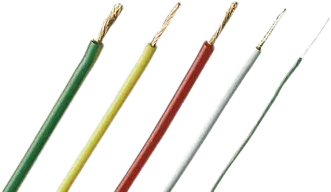

Silicone-stranded wire, high flexible, halogen free, Cableline, 0.75 mm², 385 x 0.05 mm, gray, outer Ø 3.5 mm, 61.7663-10028
Unit Price (€ / mtr.)
3.6414 € *
Standard delivery time from the manufacturer is: 4 Weeks
Total Price:
3.64 € *
Price list
Quantity
Price per unit*
1 mtr.
3.6414 €
10 mtr.
3.3796 €
100 mtr.
3.0821 €
500 mtr.
2.9155 €
1000 mtr.
2.7370 €
*incl. VAT plus shipping costs
Subject to prior sale
Stranded wire, 61.7663-10028, Stäubli Electrical Connectors
The 61.7663-10028 super flexible stranded wire is reinforced with double-layer insulation for the highest safety. Damage to the outer layer of insulation can be more easily recognized due to the different color of the underlying layer.
This product is suitable for hand-held test leads for maximum safety requirements and high thermal stress.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Cable cross-section | 0.75 mm² | |
| Core insulation material | silicone | |
| Cable structure | 385 x 0.05 mm | |
| Outer diameter | 3.5 mm | |
| Colour | gray | |
| Test voltage | 10 kV | |
| Temperature range (active) | -5 °C to 90 °C | |
| Rated voltage | 1.5 kV | |
| Halogen free | Yes | |
| Cable material | copper |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85446090 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
