61.7632-10022 | Stäubli Electrical Connectors

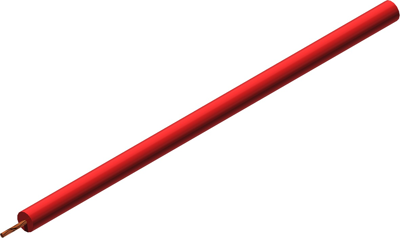

Silicone-stranded wire, highly flexible, halogen free, Cableline, 1.0 mm², 259 x 0.07 mm, red, outer Ø 5.5 mm, 61.7632-10022
Unit Price (€ / mtr.)
9.0559 € *
Available: 78 mtr.
Leadtime: 1 Week **
Total Price:
9.06 € *
Price list
Quantity
Price per unit*
1 mtr.
9.0559 €
10 mtr.
8.2348 €
50 mtr.
7.6041 €
100 mtr.
6.9972 €
500 mtr.
6.5807 €
*incl. VAT plus shipping costs
**Subject to prior sale
Stranded wire, 61.7632-10022, Stäubli Electrical Connectors
Super flexible, reinforced insulated stranded wire. Super-fine Cu strand, bright-soft, tightly twisted.
Features
- Silicone insulation
- Halogen-free
Applications
- Flexible high voltage wiring
- Hand-held test leads for high voltage tests
Technical specifications
| Outer diameter | 5.5 mm | |
| Core insulation material | silicone | |
| Temperature range (active) | -50 °C to 90 °C | |
| Conductor category | CL.6 = finest stranded | |
| Cable material | copper, bright | |
| Cable cross-section | 1.0 mm² | |
| Rated voltage | 5 kV | |
| Cable structure | 259 x 0.07 mm | |
| Test voltage | 20 kV | |
| Colour | red | |
| Halogen free | Yes |
Download
Logistics
| Customs tariff number | 85446090 |
| Country of origin | DE |
| Original Packaging | Reel with 100 meters |
Compliance
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
