61.7618-10033 | Stäubli Electrical Connectors
Silicone-stranded wire, high flexible, halogen free, Cableline, 70 mm², 8967 x 0.1 mm, transparent, outer Ø 16.4 mm, 61.7618-10033
Unit Price (€ / mtr.)
104.9342 € *
Available: 15 mtr.
Leadtime: On Request **
Total Price:
104.93 € *
Price list
Quantity
Price per unit*
1 mtr.
104.9342 €
10 mtr.
93.1770 €
50 mtr.
84.7756 €
100 mtr.
78.4329 €
500 mtr.
72.0664 €
*incl. VAT plus shipping costs
**Subject to prior sale

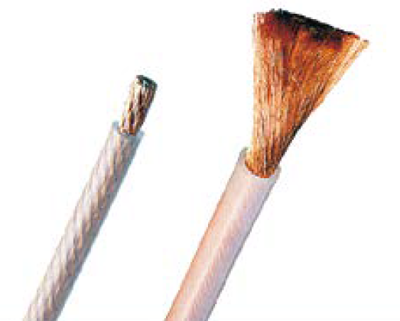

Flexible stranded wire, 61.7618-10033, Stäubli Electrical Connectors
The 61.7618-10033 is a highly flexible stranded wire with reinforced insulation and super-fine Cu strand. It is suitable for current feeds and earth/ground wires in machine, plant and accumulator construction.
Technical specifications
| Outer diameter | 16.4 mm | |
| Standard number | UL | |
| Rated voltage UL/CSA | 1.5 kV | |
| Core insulation material | silicone | |
| Temperature range (active) | -50 °C to 90 °C | |
| Cable material | copper | |
| Cable cross-section | 70 mm² | |
| Rated voltage | 1.5 kV | |
| Cable structure | 8967 x 0.1 mm | |
| Test voltage | 14 kV | |
| Colour | transparent | |
| Halogen free | Yes |
Download
Logistics
| Customs tariff number | 85446010 |
| Country of origin | DE |
| Original Packaging | Reel with 50 meters |
Compliance
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
