61.7610-10028 | Stäubli Electrical Connectors

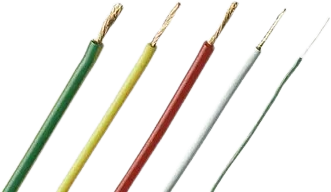

Silicone-stranded wire, highly flexible, halogen free, Cableline, 2.5 mm², 651 x 0.07 mm, gray, outer Ø 4.6 mm, 61.7610-10028
Unit Price (€ / mtr.)
6.7830 € *
Available: 95 mtr.
Total Price:
6.78 € *
Price list
Quantity
Price per unit*
1 mtr.
6.7830 €
10 mtr.
5.9738 €
100 mtr.
5.4264 €
500 mtr.
5.0099 €
1000 mtr.
4.6053 €
*incl. VAT plus shipping costs
Subject to prior sale
Stranded wire, 61.7610-10028, Stäubli Electrical Connectors
This super flexible stranded wire with reinforced insulation is suitable for hand-held test leads for high thermal stress.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Cable cross-section | 2.5 mm² | |
| Core insulation material | silicone | |
| Cable structure | 651 x 0.07 mm | |
| Outer diameter | 4.6 mm | |
| Colour | gray | |
| Test voltage | 10 kV | |
| Standard number | UL | |
| Conductor category | CL.6 = finest stranded | |
| Rated voltage | 1.5 kV | |
| Halogen free | Yes | |
| Cable material | copper, bright |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85446090 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
