60.7265-10022 | Stäubli Electrical Connectors

TPE-Stranded wire, high flexible, FlexiPlast-2V, 2.0 mm², red, outer Ø 3.9 mm

Order No.: 94F997
EAN: 4099891189167
MPN:
60.7265-10022
60.7265-22
Series: FlexiPlast-2V
Stäubli Electrical Connectors
default L

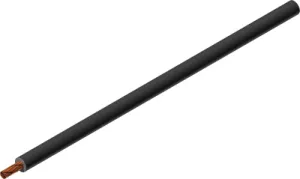

Image may differ
Unit Price (€ / mtr.)
3.5343 € *
Available: 0 mtr.
Leadtime: 4 Weeks **
Total Price:
3.53 € *
Price list
Quantity
Price per unit*
1 mtr.
3.5343 €
10 mtr.
3.0702 €
100 mtr.
2.8322 €
500 mtr.
2.6061 €
1000 mtr.
2.4514 €
*incl. VAT plus shipping costs
**Subject to prior sale

Stranded wire, 60.7265-10022, Stäubli Electrical Connectors

Highly flexible stranded wire with reinforced double-layer insulation for the highest safety. Damage to the outer layer of insulation can be more easily recognised due to the different colour of the underlying layer.

Applications

  • Hand-held test leads for maximum safety requirements
  • Hand-held test leads for high thermal stress
Technical specifications
Core insulation material TPE
Outer diameter 3.9 mm
Colour red
Cable structure 525 x 0.07 mm
Conductor category CL.5 = fine stranded
Cable material copper, bright
Cable cross-section 2.0 mm²
Rated voltage 1 kV
Test voltage 6 kV
Temperature range (active) -30 °C to 90 °C
Logistics
Country of origin DE
Customs tariff number 85446090
Original Packaging Reel with 100 meters
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free No
Substance description Lead
Variations
Cable cross-section
Outer diameter
Colour
Cable structure
AWG cross-section
Core insulation material
Conductor category
Temperature range (active)
Rated voltage
Cable material
1 item in 14 variations
