66.9829-26 | Stäubli Electrical Connectors
Flat measuring gripper, purple, max. 25 mm, L 152 mm, CAT III, socket 4 mm, 66.9829-26
Unit Price (€ / pc.)
13.3399 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
13.34 € *
Price list
Quantity
Price per unit*
1 pcs.
13.3399 €
10 pcs.
11.7453 €
50 pcs.
10.9599 €
100 pcs.
10.4720 €
500 pcs.
9.9365 €
*incl. VAT plus shipping costs
Subject to prior sale
Flat test clip, 66.9829-26, Stäubli Electrical Connectors

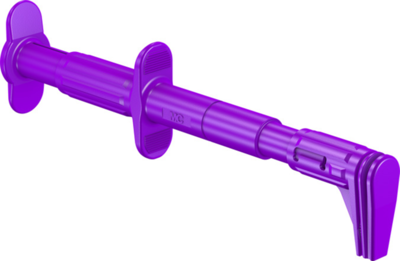

The 66.9829-26 is a purple flat test clip with a quick adjustable stop secure contact during voltage measurements. This product has Ø 4 mm rigid socket in handle accepting spring-loaded and Ø 4 mm plugs with rigid insulating sleeve.
Technical specifications
| Colour | purple | |
| contact surface | nickel-plated | |
| clamping force range | max. 25 mm | |
| Length | 152 mm | |
| Connection | socket 4 mm | |
| Rated Voltage | 600 V | |
| Rated current | 5 A | |
| Rated category | CAT III |
Download
Logistics
| Customs tariff number | 85369010 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| Substance description | Lead |
| SVHC free | No |
| RoHS conform | Yes |
