66.9829-24 | Stäubli Electrical Connectors
Flat measuring gripper, yellow, max. 25 mm, L 152 mm, CAT III, socket 4 mm, 66.9829-24
NCNR (non cancelable / non returnable)
Unit Price (€ / pc.)
15.4819 € *
Available: 9 pcs.
Available in 10 days: 20 pcs. - if ordered today
Total Price:
15.48 € *
Price list
Quantity
Price per unit*
1 pcs.
15.4819 €
10 pcs.
13.6255 €
50 pcs.
12.7211 €
100 pcs.
12.1499 €
500 pcs.
11.5430 €
*incl. VAT plus shipping costs
Subject to prior sale

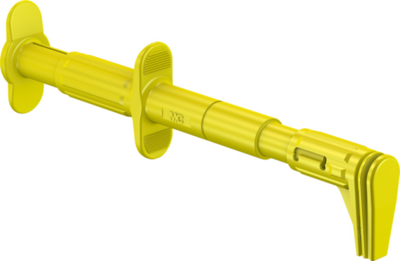

Flat test clip, 66.9829-24, Stäubli Electrical Connectors
The 66.9829-24 is a yellow flat test clip with a quick adjustable stop secure contact during voltage measurements. This product has Ø 4 mm rigid socket in handle accepting spring-loaded and Ø 4 mm plugs with rigid insulating sleeve.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| clamping force range | max. 25 mm | |
| Connection | socket 4 mm | |
| Colour | yellow | |
| contact surface | nickel-plated | |
| Rated category | CAT III | |
| Rated Voltage | 600 V | |
| Rated current | 5 A | |
| Length | 152 mm |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85369010 |
Compliance
| Property | Value |
|---|---|
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
| Substance description | Lead |
| RoHS conform | Yes |
