66.9575-23 | Stäubli Electrical Connectors
Alligator clip, blue, max. 30 mm, L 92 mm, CAT III, socket 4 mm, 66.9575-23
Unit Price (€ / pc.)
9.1035 € *
Available: 36 pcs.
Available in 10 days: 250 pcs. - if ordered today
Total Price:
9.10 € *
Price list
Quantity
Price per unit*
1 pcs.
9.1035 €
10 pcs.
8.0206 €
50 pcs.
7.0567 €
100 pcs.
6.7592 €
500 pcs.
6.3308 €
*incl. VAT plus shipping costs
Subject to prior sale

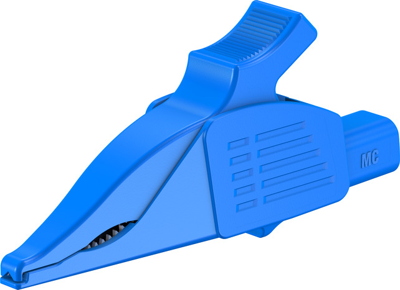

Dolphin clip, 66.9575-23, Stäubli Electrical Connectors
The 66.9575-23 is a blue dolphin clip made of brass with insulation on all sides and has a toothed jaw for wide grip with surface for fine wire. This product has also Ø 4 mm rigid socket in insulator accepting spring-loaded and Ø 4 mm plugs with rigid insulating sleeve.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| clamping force range | max. 30 mm | |
| Connection | socket 4 mm | |
| Colour | blue | |
| Contact material | brass | |
| contact surface | nickel-plated | |
| Rated category | CAT III | |
| Rated Voltage | 1000 V | |
| Rated current | 32 A | |
| Length | 92 mm |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85369010 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | No |
| Substance description | Lead |
