3SE5114-0CD02-1AC5 | Siemens

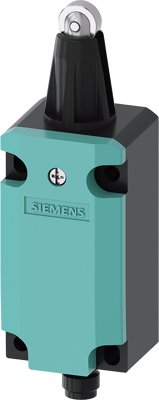

Position switch, 2 pole, 1 Form A (N/O) + 1 Form B (N/C), roller plunger, M12-plug, IP66/IP67, 3SE5114-0CD02-1AC5
Order No.: 80P7439
EAN: 4047621019475
MPN:
3SE5114-0CD02-1AC5
3SE51140CD021AC5
Unit Price (€ / pc.)
107.5760 € *
Available: 0 pcs.
Leadtime: 1 Week **
Position switch, with Roller plunger 3SE5114, Metal enclosure 40 mm according to EN 50041 1 NO/1 NC quick action contacts with M12 connector, 5-pole, fixed PIN assignment: Pin 1=21, Pin 2=22 Pin 3=13, Pin 4=14, Pin 5=PE Mechanical position switches SIRIUS 3SE5 for position sensing of machine parts and position monitoring of protection equipment.
Technical specifications
| Connection | M12-plug | |
| Actuator | roller plunger | |
| Pin number | 2 pole | |
| Latching switching function | 1 Form A (N/O) + 1 Form B (N/C) | |
| Degree of protection (IP) | IP66/IP67 |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85365080 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Lead |
