3SE5112-0LD02-1AA7 | Siemens

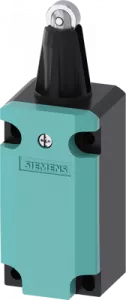

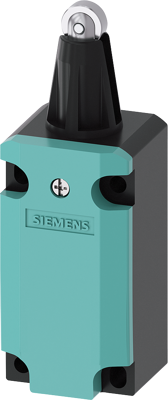

Position sensor, 3 pole, 1 Form A (N/O) + 2 Form B (N/C), roller plunger, IP66/IP67, 3SE5112-0LD02-1AA7
Order No.: 80P7413
EAN: 4047621031606
MPN:
3SE5112-0LD02-1AA7
3SE51120LD021AA7
Unit Price (€ / pc.)
84.1568 € *
Standard delivery time from the manufacturer is: 1 Week
Position switch metal enclosur 40 mm according to EN 50041 Roller plunger with Stainless steel roller 13 mm with 3mm overtravel, 1 NO/2 NC quick action contacts, Device connection 1x (M20 x 1.5), actuating/restoring force 30 N only available as complete unit Mechanical position switches SIRIUS 3SE5 for position sensing of machine parts and position monitoring of protection equipment.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Latching switching function | 1 Form A (N/O) + 2 Form B (N/C) | |
| Pin number | 3 pole | |
| Degree of protection (IP) | IP66/IP67 | |
| Actuator | roller plunger |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85365080 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| Substance description | Imidazolidine-2-thione (2-imidazoline-2-thiol) |
| RoHS conform | Yes |
| SVHC free | No |
