3SE2257-6XX40 | Siemens

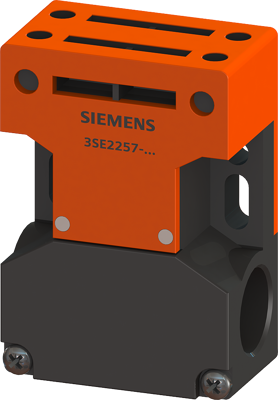

Safety switch, 1 pole, 1 Form B (N/C), screw connection, IP67, 3SE2257-6XX40
Order No.: 80P7239
EAN: 4011209536777
MPN:
3SE2257-6XX40
3SE22576XX40
NCNR (non cancelable / non returnable)
Unit Price (€ / pc.)
59.5833 € *
Standard delivery time from the manufacturer is: On Request
Safety position switch with separate actuator Molded-plastic-encapsulated short enclosure, 3x(M20x1.5) lateral and face-end operation slow-action contact 1 NC, Pull-out force 5 N Supplied without actuator safety position switch SIRIUS 3SE22 for tamper-proof monitoring of protective grilles, flaps or doors.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Latching switching function | 1 Form B (N/C) | |
| Pin number | 1 pole | |
| Connection | screw connection | |
| Degree of protection (IP) | IP67 |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85365080 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
