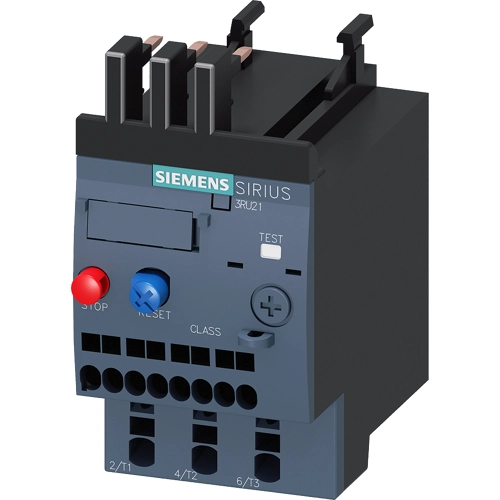

3RU2116-0FC0 | Siemens
Overload protection relay, 3 pole, 0.35 to 0.5 A, 0.5 A, spring connection, 3RU2116-0FC0
Order No.: 27H5188
EAN: 4011209781979
MPN:
3RU2116-0FC0
3RU21160FC0
Unit Price (€ / pc.)
62.0942 € *
Available: 0 pcs.
Leadtime: 1 Week **
Overload relay 0.35...0.50 A Thermal For motor protection Size S00, Class 10 Contactor mounting Main circuit: Spring-type terminal Auxiliary circuit: spring-type terminal Manual-Automatic-Reset thermal overload relay SIRIUS 3RU2 for inverse-time delayed protection of loads with normal starting against excessive temperature rises due to overload or phase failure.
Technical specifications
| Connection | spring connection | |
| Version | Overload relay | |
| Release | 0.35 to 0.5 A | |
| rated voltage (AC) | 690 V | |
| Actuator | slide switch | |
| Assembly | panel mounting | |
| Rated current | 0.5 A | |
| Network frequency | 50/60 Hz | |
| Pin number | 3 pole | |
| Degree of protection (IP) | IP20 |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85364900 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Lead |
