3NB1724-0KK10 | Siemens

NH fuse NH00, 125 A, aR, 440 V (DC), 100 kA breaking capacity, 3NB1724-0KK10

Order No.: 80P6695
EAN: 4047624274574
MPN:
3NB1724-0KK10
3NB17240KK10
Series: SITOR
Siemens
default L

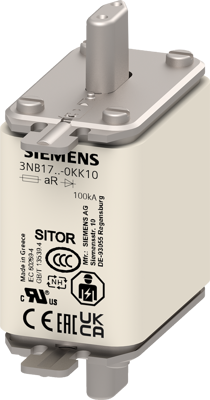

Image may differ
Print
Key Specification:
Version NH fuse
Design NH00
Enclosure ceramic tube
Rated current 125 A
Tripping characteristics aR
Show 14 variants
Download Datasheet Technical specifications
Unit Price (€ / pc.)
85.8823 € *
Available: 0 pcs.
Leadtime: 5 Weeks **
Add to Cart
Total Price:
85.88 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
85.8823 €
Description
Technical specifications
Download
Logistics
Compliance
Variations
SITOR fuse size 00 125A aR 440V DC/700V VSI 500V DC UL @MBC 4xIn blade contacts.
Technical specifications
Version NH fuse
Tripping characteristics aR
Breaking capacity 100 kA
Design NH00
Width 30 mm
Enclosure ceramic tube
Height 79 mm
Length 60 mm
Rated voltage (DC) 440 V
Rated current 125 A
Show similar products 0
Logistics
Country of origin GR
Customs tariff number 85361090
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
Variations
Design
Width
Unit:
Length
Unit:
Height
Unit:
Rated current
Unit:
Tripping characteristics
Version
Breaking capacity
Unit:
Rated voltage (DC)
Unit:
Enclosure
1 item in 14 variations
