3NA7803-6 | Siemens

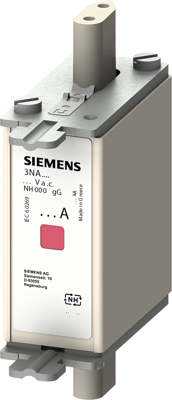

NH fuse NH000, 10 A, gG, 250 V (DC), 690 V (AC), 120 kA breaking capacity, 3NA7803-6

Order No.: 27H2435
EAN: 4001869151311
MPN:
3NA7803-6
3NA78036
Siemens
default L
Image may differ
Print
Key Specification:
Version NH fuse
Design NH000
Enclosure ceramic tube
Rated current 10 A
Tripping characteristics gG
Show 25 variants
Download Datasheet Technical specifications
Unit Price (€ / pc.)
21.5985 € *
Available: 0 pcs.
Leadtime: 1 Week **
Add to Cart
Total Price:
21.60 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
21.5985 €
Description
Technical specifications
Download
Logistics
Compliance
Variations
LV HRC fuse element, NH000, In: 10 A, gG, Un AC: 690 V, Un DC: 250 V, Combined indicator, live grip lugs LV HRC fuse link SENTRON 3NA7 for selective system and line protection.
Technical specifications
Version NH fuse
Tripping characteristics gG
Breaking capacity 120 kA
Design NH000
Width 21 mm
Enclosure ceramic tube
Height 77.8 mm
Length 52.5 mm
Rated voltage (AC) 690 V
Rated voltage (DC) 250 V
Rated current 10 A
Show similar products 0
Logistics
Country of origin GR
Customs tariff number 85361010
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
