6AV2124-0QC24-0AX0 | Siemens

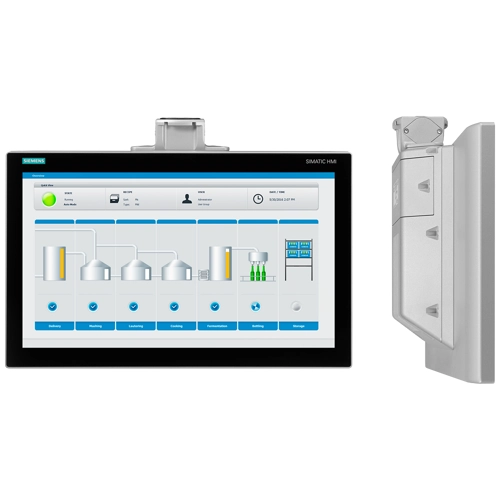

15.6" HMI panel, touch operation, 1366 x 768, for support arm without extension elements, 6AV2124-0QC24-0AX0
NCNR (non cancelable / non returnable)
Unit Price (€ / pc.)
5,002.5696 € *
Standard delivery time from the manufacturer is: 1 Week
6AV21240QC240AX0, Siemens
SIMATIC HMI TP1500 Comfort Pro, for support arm (not expandable, flange on top), Comfort Panel, touch operation, 15 widescreen TFT display, 16 million colors, PROFINET interface, MPI/PROFIBUS DP interface, 24 MB configuration memory, WEC 2013, configurable from WinCC Comfort V14 SP1 with HSP The Comfort Panels are designed for implementing high-performance visualization tasks at machine-level. The Comfort Panels PRO are a device series with high degree of protection IP65 (NEMA4) and flexible mounting options - directly on the machine via special adapters, on a stand, or on a support arm system.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | touch operation | |
| Suitable for | support arm without extension elements | |
| screen diagonal | 15.6" | |
| Resolution | 1366 x 768 | |
| Width | 396 mm | |
| Height | 256 mm |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85371091 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Electrical equipment take-back |  |
| Substance description | Lead monoxide (lead oxide) | Silicic acid, lead salt | 4,4'-isopropylidenediphenol | Lead |
