6AG1331-6SB00-7AY0 | Siemens

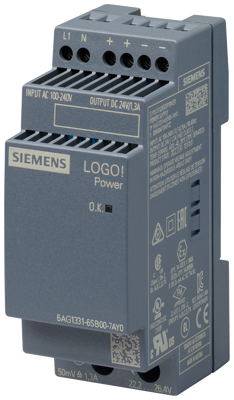

DIN rail power supply, 24 VDC, 1.3 A, 31.2 W, 6AG1331-6SB00-7AY0
Unit Price (€ / pc.)
269.892 € *
Available: 1 pcs.
Leadtime: 12 Weeks **
6AG13316SB007AY0, Siemens
SIPLUS LOGO! power 24 V 1.3 A based on 6EP3331-6SB00-0AY0 with conformal coating, -40 - 70 °C, start up -25 °C, stabilized power supply input: 100-240 V AC output: 24 V DC/ 1.3 A The SIPLUS extreme version protects the automation components against harsh environmental conditions, such as particularly high and low temperatures, corrosive gases, condensation, frost and biologically, chemically and mechanically active substances, which can occur in control cabinets near the production or in container solutions. Your automation tasks are reliably protected and offer additional investment security.
Technical specifications
| Output voltage DC | 24 VDC | |
| Output current | 1.3 A | |
| Width | 36 mm | |
| Input voltage AC | 100-240 VAC | |
| Height | 90 mm | |
| Power | 31.2 W | |
| Degree of protection (IP) | IP20 | |
| Depth | 53 mm | |
| efficiency | 86 % |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85044095 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Lead |
