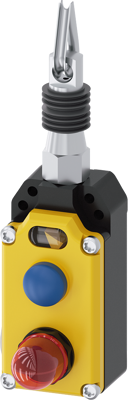

3SE7150-1BH04 | Siemens
Cable-operated switch, 1 pushbutton, 1 indicator light red, 2 Form B (N/C) + 1 Form A (N/O), latching, 3SE7150-1BH04
Order No.: 80P7945
EAN: 4011209852938
MPN:
3SE7150-1BH04
3SE71501BH04
Unit Price (€ / pc.)
327.726 € *
Standard delivery time from the manufacturer is: 1 Week
Safety cable-operated switch metal enclosure, 2 xM20x1.5- with yellow cover with latching according to EN ISO 13850 button reset, with LED lamp 24 V DC, red, for wire lengths up to 20 m cable-operated switch SIRIUS 3SE7 for monitoring or for EMERGENCY STOP devices on system components particularly subject to hazards, e.g. conveyor belts.
Technical specifications
| Version | 1 pushbutton, 1 indicator light red | |
| Latching switching function | 2 Form B (N/C) + 1 Form A (N/O) | |
| Contact function | latching | |
| Shell size | 74 x 171 x 52 mm | |
| Colour | black/yellow | |
| Degree of protection (IP) | IP65 |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85365019 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
