3SE7141-1EG10-0CA1 | Siemens

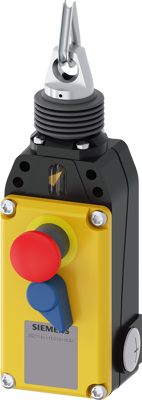

Cable-operated switch, 1 emergency stop pushbutton red, 1 rotary actuator, 1 Form A (N/O) + 3 Form B (N/C), latching, 3SE7141-1EG10-0CA1
Order No.: 80P7942
EAN: 4047621090030
MPN:
3SE7141-1EG10-0CA1
3SE71411EG100CA1
Unit Price (€ / pc.)
464.6593 € *
Standard delivery time from the manufacturer is: 1 Week
Cable-operated switch with emergency stop metal enclosure IP67, yellow cover, 3 xM20 x1.5- slow-action contacts 1 NO+3 NC- latching according to EN ISO 13850, with rotate-to-unlatch mechanism, for cable lengths up to 75 m.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | 1 emergency stop pushbutton red, 1 rotary actuator | |
| Latching switching function | 1 Form A (N/O) + 3 Form B (N/C) | |
| Contact function | latching | |
| Shell size | 83 x 201 x 67 mm | |
| Colour | black/yellow | |
| Degree of protection (IP) | IP67 |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85365080 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
