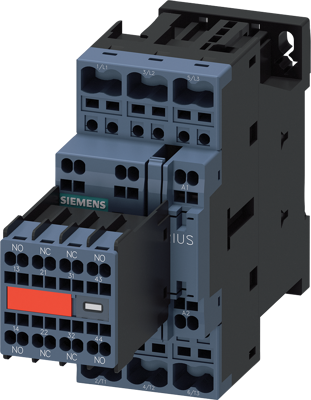

3RT2028-2AL24-3MA0 | Siemens
Power contactor, 3 pole, 38 A, 2 Form A (N/O) + 2 Form B (N/C), coil 230 VAC, spring connection, 3RT2028-2AL24-3MA0
Order No.: 27H4712
EAN: 4011209837997
MPN:
3RT2028-2AL24-3MA0
3RT20282AL243MA0
Unit Price (€ / pc.)
151.725 € *
Available: 0 pcs.
Leadtime: 1 Week **
Power contactor, AC-3e/AC-3, 38 A, 18.5 kW / 400 V, 3-pole, 230 V AC, 50/60 Hz, auxiliary contacts: 2 NO + 2 NC, spring-loaded terminal, size: S0, captive auxiliary switch, no surge suppressor retrofittable Power contactor SIRIUS 3RT2 for switching motors.
Technical specifications
| Connection | spring connection | |
| Version | power contactor | |
| Assembly | DIN rail | |
| Rated current | 38 A | |
| Pin number | 3 pole | |
| Latching switching function | 2 Form A (N/O) + 2 Form B (N/C) | |
| Degree of protection (IP) | IP20 | |
| Control Voltage | 230 VAC |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85364900 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
