3RT1276-6NF36 | Siemens

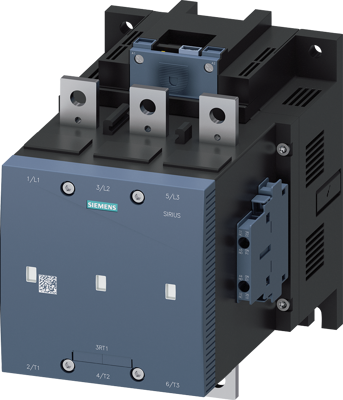

Vacuum contactor, 3 pole, 500 A, 2 Form A (N/O) + 2 Form B (N/C), coil 96-127 V AC/DC, screw connection, 3RT1276-6NF36
Order No.: 27H3701
EAN: 4011209509610
MPN:
3RT1276-6NF36
3RT12766NF36
Unit Price (€ / pc.)
3,628.7146 € *
Available: 0 pcs.
Leadtime: 1 Week **
Total Price:
3,628.71 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
3,628.7146 €
Vacuum contactor AC-3e/AC-3 500 A, 250 kW / 400 V, 3-pole, Uc: 96-127 V AC(50-60 Hz) / DC PLC input 24 V DC drive: electronic auxiliary contacts 2 NO + 2 NC main circuit: busbar control and auxiliary circuit: screw terminal Vacuum contactor SIRIUS 3RT12 for switching motors.
Technical specifications
| Connection | screw connection | |
| Version | vacuum contactor | |
| Assembly | screw mounting | |
| Rated current | 500 A | |
| Pin number | 3 pole | |
| Latching switching function | 2 Form A (N/O) + 2 Form B (N/C) | |
| Degree of protection (IP) | IP00/IP20 | |
| Control Voltage | 96-127 V AC/DC |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85364900 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | lead monoxide, lead titanium zirconium oxide, lead |
