3RH2911-4GA13 | Siemens

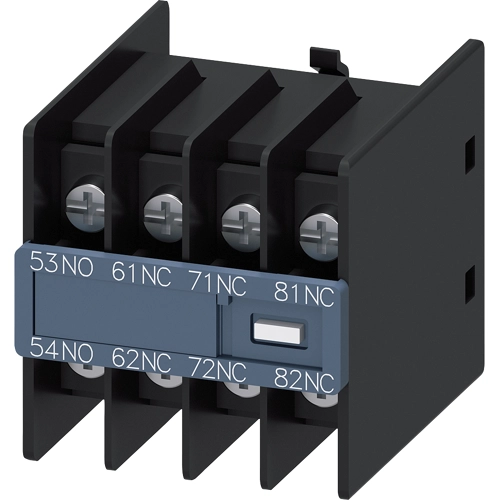

Auxiliary switch, 4 pole, 10 A, 1 Form A (N/O) + 3 Form B (N/C), ring cable lug connection, 3RH2911-4GA13
Order No.: 27H3207
EAN: 4011209829718
MPN:
3RH2911-4GA13
3RH29114GA13
Unit Price (€ / pc.)
20.4323 € *
Standard delivery time from the manufacturer is: On Request
Auxiliary switch, on the front, 1 NO + 3 NC, 53/54, 61/62, 71/72, 81/82, current path: 1 NO, 1 NC, 1 NC, 1 NC, ring cable lug connection, physically coded, only with contactor relays 3RH2140 and 3RH2441 combinable (according to EN 50011) auxiliary switch SIRIUS 3RH29 for the expansion of auxiliary contacts in the control circuit.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Connection | ring cable lug connection | |
| Latching switching function | 1 Form A (N/O) + 3 Form B (N/C) | |
| Assembly | snap-on mounting | |
| Pin number | 4 pole | |
| Degree of protection (IP) | IP00 | |
| Version | auxiliary switch | |
| Rated current | 10 A |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CZ |
| Customs tariff number | 85365080 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
