3RH2911-4GA04 | Siemens

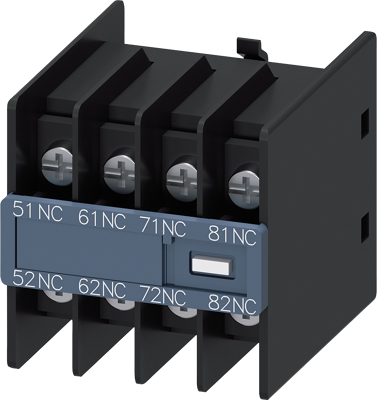

Auxiliary switch, 4 pole, 10 A, 4 Form B (N/C), ring cable lug connection, 3RH2911-4GA04

Order No.: 27H3206

EAN: 4011209829725

MPN:

3RH2911-4GA04

3RH29114GA04

Image may differ

Key Specification:

Version auxiliary switch

Latching switching function 4 Form B (N/C)

Pin number 4 pole

Rated current 10 A

Download Datasheet Technical specifications

This item is no longer available.

As an alternative, we recommend the following item:

Auxiliary switch, 4 pole, 10 A, 4 Form B (N/C), screw connection, 3RH2911-1GA04

Order No.: 27H3165

Manufacturer: Siemens

per pc. 28.3577 € *

Go to product

*incl. VAT plus shipping costs

Description

Auxiliary switch, on the front, 4 NC, 51/52, 61/62, 71/72, 81/82, current path: 1 NC, 1 NC, 1 NC, 1 NC, ring cable lug connection, physically coded, only with contactor relays 3RH2140 and 3RH2440 combinable (according to EN 50011) auxiliary switch SIRIUS 3RH29 for the expansion of auxiliary contacts in the control circuit.

Technical specifications

Filter	Property	Value
	Version	auxiliary switch
	Latching switching function	4 Form B (N/C)
	Pin number	4 pole
	Rated current	10 A
	Connection	ring cable lug connection
	Assembly	snap-on mounting
	Degree of protection (IP)	IP00
