3RH2911-1HA21 | Siemens

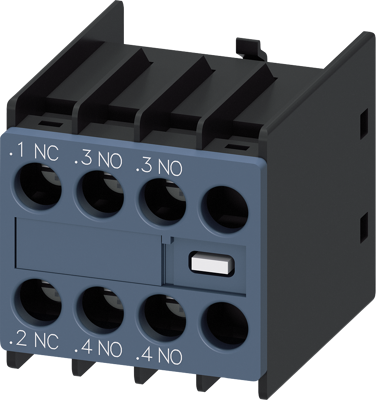

Auxiliary switch, 3 pole, 10 A, 2 Form A (N/O) + 1 Form B (N/C), screw connection, 3RH2911-1HA21
Order No.: 27H3178
EAN: 4011209829374
MPN:
3RH2911-1HA21
3RH29111HA21
Unit Price (€ / pc.)
19.1233 € *
Standard delivery time from the manufacturer is: 1 Week
Auxiliary switch, on the front, 2 NO + 1 NC, .1/.2, .3/.4, .3/.4, --/--, current path: 1 NC, 1 NO, 1 NO, --, screw terminal, for contactors 3RT2 and contactor relays 3RH2 auxiliary switch SIRIUS 3RH29 for the expansion of auxiliary contacts in the control circuit.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Connection | screw connection | |
| Version | auxiliary switch | |
| Degree of protection (IP) | IP20 | |
| Pin number | 3 pole | |
| Assembly | DIN rail | |
| Latching switching function | 2 Form A (N/O) + 1 Form B (N/C) | |
| Rated current | 10 A |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85365080 |
| Country of origin | CZ |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
