3RH2911-1GA40 | Siemens
Auxiliary switch, 4 pole, 10 A, 4 Form A (N/O), screw connection, 3RH2911-1GA40
Order No.: 27H3169
EAN: 4011209829237
MPN:
3RH2911-1GA40
3RH29111GA40
Unit Price (€ / pc.)
23.5025 € *
Standard delivery time from the manufacturer is: 1 Week

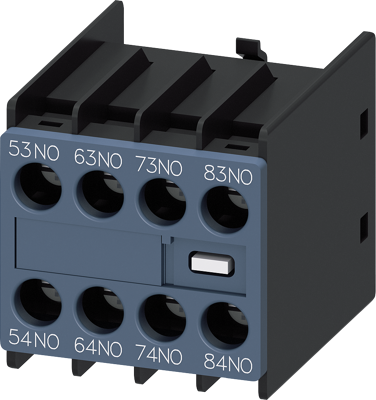

Auxiliary switch, on the front, 4 NO, 53/54, 63/64, 73/74, 83/84, current path: 1 NO, 1 NO, 1 NO, 1 NO, screw terminal, physically coded, only with contactor relays 3RH2140 and 3RH2440 combinable (according to EN 50011) auxiliary switch SIRIUS 3RH29 for the expansion of auxiliary contacts in the control circuit.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | auxiliary switch | |
| Pin number | 4 pole | |
| Latching switching function | 4 Form A (N/O) | |
| Degree of protection (IP) | IP20 | |
| Connection | screw connection | |
| Rated current | 10 A | |
| Assembly | DIN rail |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85365080 |
| Country of origin | CZ |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
