5SJ6113-6KS | Siemens

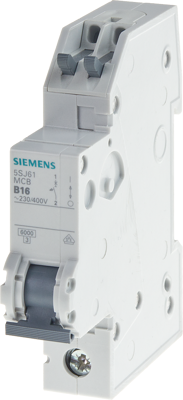

Circuit breaker, 1 pole, B Curve, 13 A, DIN rail
Order No.: 27H6348
EAN: 4001869323893
MPN:
5SJ6113-6KS
5SJ61136KS
Unit Price (€ / pc.)
11.3169 € *
Available: 0 pcs.
Leadtime: 1 Week **
Miniature circuit breaker 230/400 V 6kA, 1-pole, B, 13 A, D=70 mm with screwless outgoing terminals The miniature circuit breaker is the fuse for short-circuit protection. The miniature circuit breakers from Siemens, as an important component of the SENTRON protective components for electronic installations, provide effective protection for personnel and plants by reliably shutting down in the event of an overload or short-circuit. User-friendly mounting and connection technology, standardized additional components and an integrated design - these are the characteristics of the device family.
Features
- Effective personnel, investment and plant protection against overload and short-circuits
- Reliable safety during installation due to standard reach-around and touch protection
- The data matrix code on the front of the device provides quick and easy access to information on all aspects of miniature circuit breakers
- Optimized technology for your safety
Technical specifications
| Tripping characteristics | B | |
| Rated current | 13 A | |
| Assembly | DIN rail | |
| Rated voltage (AC) | 400 V | |
| Rated voltage (DC) | 60 V | |
| Pin number | 1 pole | |
| Degree of protection (IP) | IP20 |
Download
Logistics
| Country of origin | RO |
| Customs tariff number | 85362010 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
