3LD5210-0TK11 | Siemens

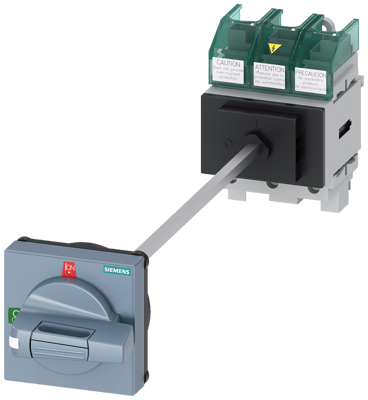

Main switch, Rotary actuator, 3 pole, 63 A, 690 V, (W x H x D) 75 x 106 x 408 mm, front installation/DIN rail, 3LD5210-0TK11
Unit Price (€ / pc.)
141.9908 € *
Available: 0 pcs.
Leadtime: 1 Week **
3LD52100TK11, Siemens
SENTRON, Molded case switch 3LD5 UL, Main switch, 3-pole, certified according to UL489 UL60947-4-1 and IEC60947-3, UL: 60A, SCCR 50kA at 480VAC, Operating power at 480VAC 3-phase: 40hp, IEC: 63A, Operating power at AC-23A at 400V: 30kW, floor mounting with door coupling rotary operating mechanism, defeatable, Standard, 4-hole mounting of the handle, without tolerance compensation, incl. terminal covers for the infeed side .
Technical specifications
| Actuator | Rotary actuator | |
| Width | 75 mm | |
| Permanent current | 63 A | |
| Height | 106 mm | |
| Isolation voltage | 690 V | |
| Assembly | front installation/DIN rail | |
| Pin number | 3 pole | |
| Degree of protection (IP) | IP65 | |
| Depth | 408 mm |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85365080 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
