3LD2122-3VK13 | Siemens

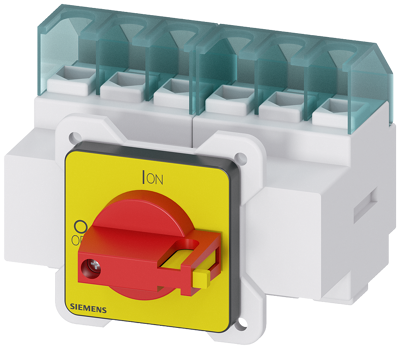

Emergency stop load-break switch, rotary actuator, 6 pole, 25 A, 690 V, (W x H x D) 49 x 71 x 85.5 mm, front installation/DIN rail, 3LD2122-3VK13

Order No.: 70P5784
EAN: 4011209491274
MPN:
3LD2122-3VK13
3LD21223VK13
Series: SENTRON
3LD2122-3VK13 Siemens Circuit Breakers
Image may differ
Unit Price (€ / pc.)
85.0017 € *
Standard delivery time from the manufacturer is: 1 Week
Total Price:
85.00 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
85.0017 €

3LD21223VK13, Siemens

SENTRON, Switch disconnector 3LD, emergency switching-off switch, 6- pole, Iu: 25 A, operating power / at AC-23 A 400 V: 9.5 kW, floor mounting with door coupling, knob-operated mechanism, red/yellow, 4-hole mounting of the handle, in neutral position can be locked .

Technical specifications
Filter Property Value
Permanent current 25 A
Actuator rotary actuator
Degree of protection (IP) IP65
Depth 85.5 mm
Assembly front installation/DIN rail
Width 49 mm
Height 71 mm
Product type emergency stop load-break switch
Pin number 6 pole
Isolation voltage 690 V
Logistics
Property Value
Country of origin DE
Customs tariff number 85365080
Compliance
Property Value
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
