3LD2050-1TL11 | Siemens

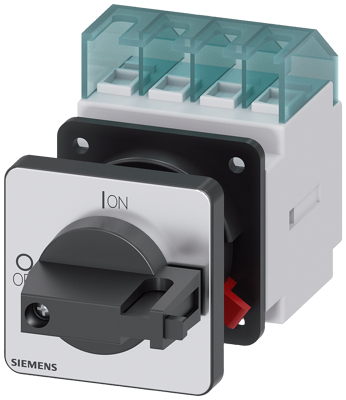

Main switch, rotary actuator, 4 pole, 16 A, 690 V, (W x H x D) 49 x 66 x 113.5 mm, front mounting, 3LD2050-1TL11

Order No.: 70P5742
EAN: 4011209519268
MPN:
3LD2050-1TL11
3LD20501TL11
Series: SENTRON
3LD2050-1TL11 Siemens Circuit Breakers
Image may differ
Unit Price (€ / pc.)
48.1712 € *
Standard delivery time from the manufacturer is: 2 Weeks
Total Price:
48.17 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
48.1712 €

3LD20501TL11, Siemens

SENTRON, Switch disconnector 3LD, main switch, 4-pole, Iu: 16 A, Operating power / at AC-23 A at 400 V: 7.5 kW, front-mounted, knob-operated mechanism, black, central mounting 22.5 mm of the handle .

Technical specifications
Filter Property Value
Pin number 4 pole
Actuator rotary actuator
Height 66 mm
Degree of protection (IP) IP65
Assembly front mounting
Depth 113.5 mm
Width 49 mm
Permanent current 16 A
Isolation voltage 690 V
Product type main switch
Logistics
Property Value
Customs tariff number 85365080
Country of origin DE
Compliance
Property Value
RoHS conform Yes
SVHC free Yes
Date of RoHS guidelines 3/31/15
