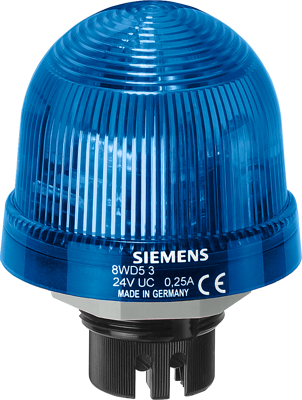

8WD5320-5BF | Siemens

Integrated signal lamp, flashing light, with integrated LED, blue, 24 V AC/DC

Order No.: 80P9705
EAN: 4011209919891
MPN:
8WD5320-5BF
8WD53205BF
Siemens
default L
Image may differ
Unit Price (€ / pc.)
199.6701 € *
Available: 0 pcs.
Leadtime: 1 Week **
Total Price:
199.67 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
199.6701 €

Integrated signal lamp, repeated flash light, with integrated LED, blue, 24 V AC/DC, Diameter 70 mm Repeated-flash light element SIRIUS 8WD5 including light sources for visual signaling in harsh ambient conditions and in outdoor installations, e.g. for the optical signaling of the operating status in production plants. The integrated signal lamps are extremely resistant to shock and vibrations. Their special shape permits optimum light emission either to the side or upwards. Feet, pipes, adapters, incandescent lamps, LEDs and pipe adapters are available as accessories. SIRIUS 8WD signaling column - Modular and with communication capability.

Technical specifications
Version LED blinking light
Width 75 mm
diameter 70 mm
Farbe der Beleuchtung blue
Colour blue
Height 66 mm
Length 31 mm
Rated current 45 mA
Degree of protection (IP) IP65
Voltage 24 V AC/DC
Logistics
Country of origin DE
Customs tariff number 85318070
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free No
Substance description Lead
