8PQ1200-6BA15 | Siemens

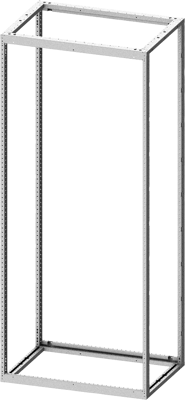

SIVACON S4 frame for ALPHA assembly kits, H: 2000mm, W: 850 mm, D: 600 mm
Unit Price (€ / pc.)
417.2735 € *
Available: 0 pcs.
Leadtime: 1 Week **
SIVACON S4 frame, for ALPHA assembly kits, H: 2000mm, W: 850mm, D: 600mm The SIVACON S4 power distribution board is a cost-efficient system made up of an enclosure and SENTRON components. The SIVACON S4 power distribution board is a system for producing a design-verified switchgear and controlgear switchgear assembly. It provides reliable, integrated and cost-efficient power distribution up to 4,000 A. Due to the modular design of the system, it can be flexibly adapted to almost any requirement. Different installation technologies, matched to components with variable accessories, are optimally adapted to the power distribution board as requirements change. The configuration software SIMARIS configuration provides support from planning to documentation of the SIVACON power distribution boards and the ALPHA UNIVERSAL distribution boards.
Technical specifications
| Version | scaffold | |
| Design | rectangular | |
| Type of mounting | Base mounting | |
| Width | 850 mm | |
| Height | 2000 mm | |
| Material | galvanized sheet steel | |
| Degree of protection (IP) | IP00 | |
| Depth | 600 mm |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85381000 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
