TCT42 | SEPA

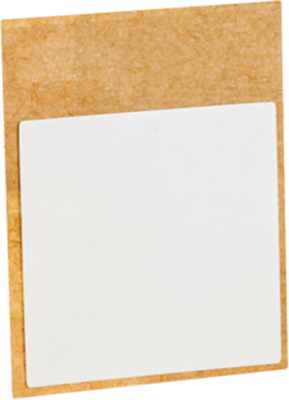

Thermal joint film, 1 W/mK, acrylic, (L x W) 42 x 42 mm, TCT42
Unit Price (€ / pc.)
0.7854 € *
Available: 93 pcs.
Total Price:
7.85 € *
Price list
Quantity
Price per unit*
10 pcs.
0.7854 €
50 pcs.
0.6902 €
*incl. VAT plus shipping costs
Subject to prior sale
Heat transfer foils, adhesive on both sides, type SEPA TCT.
For mounting heatsinks on active and passive components; Carrier material: acrylic resin. Foil thickness 0.25 mm. Tensile strength: 10 N/10mm. Thermal conductivity: 1.0 W/m x K. Dielectric strength: 2.0 kV. Operating temperatures: –60 to +150 °C.
Type: TCT42, 42 x 42 mm
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Thermal conductivity | 1 W/mK | |
| min. operating temperature | -60 °C | |
| max. operating temperature | 150 °C | |
| Material | acrylic | |
| Thickness | 0.25 mm | |
| Length | 42 mm | |
| Width | 42 mm |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85469090 |
| Country of origin | KR |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
