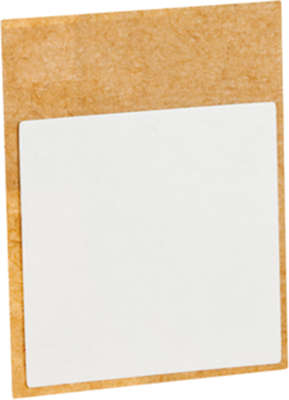

TCT35 | SEPA
Thermal joint film
Active
Product by SEPA at Bürklin Elektronik
Heat transfer foils, adhesive on both sides, type SEPA TCT.
For mounting heatsinks on active and passive components; Carrier material: acrylic resin. Foil thickness 0.25 mm. Tensile strength: 10 N/10mm. Thermal conductivity: 1.0 W/m x K. Dielectric strength: 2.0 kV. Operating temperatures: –60 to +150 °C.
Type: TCT35, 35 x 35 mm
| Thickness | 0.25 mm | |
| Material | Acrylic | |
| max. operating temperature | 150 °C | |
| min. operating temperature | -60 °C | |
| Thermal conductivity | 1 W/mK |
| Country of origin | KR |
| Customs tariff number | 85469090 |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
