PB50-50-10-169-AL | SEPA

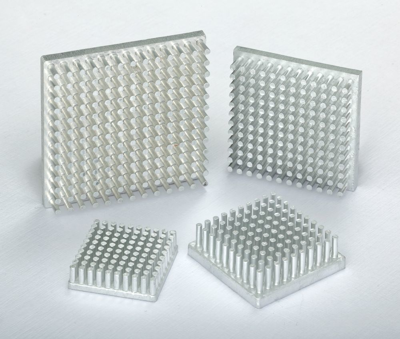

Pin heatsink, 50 x 50 x 10 mm, 12.5 K/W
Active
Product by SEPA at Bürklin Elektronik
Cooling gel, PB50-50-10-169-AL, Sepa
This Sepa cooling gel made of pure aluminum is very well suited for cooling electronic components with low overall height. Due to the extrusion process with high homogeneous material arrangement and microstructure, a very good heat distribution takes place in the base and in the pins within the heat flow direction.
| Version | pin heatsink | |
| Width | 50 mm | |
| Suitable for | Small electronic components | |
| Height | 10 mm | |
| Length | 50 mm | |
| Material | die-cast aluminum | |
| Max. heat resistance | 12.5 K/W |
| Country of origin | CN |
| Customs tariff number | 76169910 |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
