9663.2100 | SCHURTER

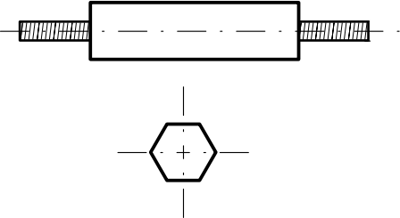

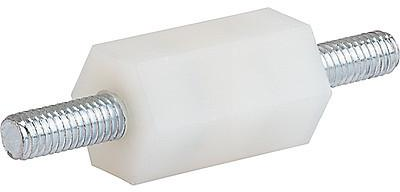

Hexagon spacer bolt, external/external thread, M6/M6, 32 mm, PA, 9663.2100
NCNR (non cancelable / non returnable)
Unit Price (€ / pc.)
1.3090 € *
Available: 160 pcs.
Total Price:
1.31 € *
Price list
Quantity
Price per unit*
1 pcs.
1.3090 €
10 pcs.
1.2019 €
50 pcs.
1.0948 €
100 pcs.
0.9877 €
*incl. VAT plus shipping costs
Subject to prior sale
Transipillars, 9663.2100, SCHURTER
Features
- Versatile and rugged insulation mounting system
- Metric threads and lenghts
- Studs and inserts moulded into nylon pyllar
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Product type | spacer bolt | |
| Version | external/external thread | |
| Thread size | M6/M6 | |
| Bolt length | 32 mm | |
| Length | 32 mm | |
| Design | hexagon | |
| External thread length | 12.5 mm | |
| Outer diameter | 16 mm | |
| Material | PA | |
| Colour | natural |
Download
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| Substance description | Lead |
| SVHC free | No |
| RoHS conform | Yes |
