0035.1360 | SCHURTER

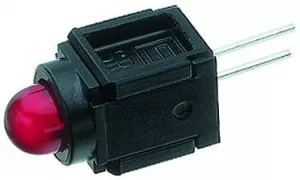

Signal light, red, 10 mcd, Mounting Ø 5 mm, pitch 2.5 mm, LED number: 1, 0035.1360
Unit Price (€ / pc.)
1.3566 € *
Standard delivery time from the manufacturer is: 11 Weeks
Signal lamps with duo LED series SRL, type Schurter 0035.
Diode diameter: 3.0 mm, for PCB mounting. Ambient temperatures: –25 to +85 °C. On-state voltage at 10 mA: red 1.6 V, green 2.0 V. On-state current: max. 45 mA. Diodes in thermoplastic housing. The housing is also available without diode.
Type: 0035.1360, red
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Luminous intensity | 0.01 cd | |

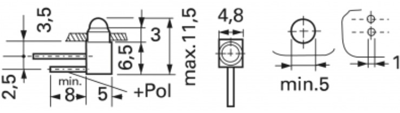

| Installation diameter | 5 mm | |
| Assembly | Front/PCB mounting | |
| Diode Diameter | 3 mm | |
| Grid | 2.5 mm | |
| Number of LEDs | 1 | |
| Farbe der Beleuchtung | red | |
| Connection | PCB connection |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CZ |
| Customs tariff number | 85414100 |
| Original Packaging | Carton with 100 pieces |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
