3-145-445 | SCHURTER
Pushbutton, 1 pole, silver, unlit , 5 A/125 VAC, mounting Ø 19 mm, 19.1 mm, IP66/IP67, 3-145-445
Unit Price (€ / pc.)
15.9103 € *
Available: 0 pcs.
Leadtime: 8 Weeks **

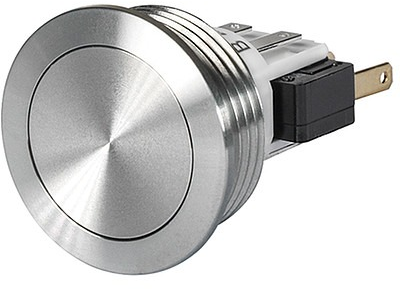

Metal switch, 3-145-445, SCHURTER
The 3-145-445 is a metal switch, non illuminated with torsion protection for easier positioning. Equipped with flat plug in terminals to permit fast connection.
Features
- Attractive tactile feedback
- High quality materials
- Long life span
Technical specifications
| Vandal-proof | Yes | |
| Printed | No | |
| Installation diameter | 19 mm | |
| contact surface | silver-plated | |
| min. Geräteausschnitt | 19.1 mm | |
| Breaking capacity | 5 A/125 VAC | |
| Actuator colour | silver | |
| Pin number | 1 pole | |
| Design | round | |
| illuminated | No | |
| Connection | quick connection | |
| Protection class | IP66/IP67 | |
| Latching switching function | groping |
Download
Logistics
| Country of origin | CH |
| Customs tariff number | 85365080 |
| Original Packaging | Carton with 10 pieces |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
