3-101-018 | SCHURTER

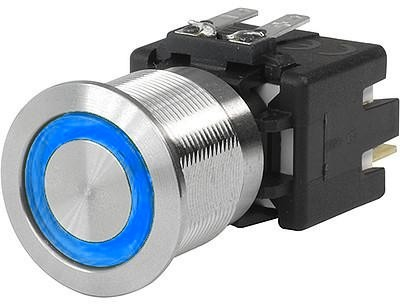

Pushbutton switch, 2 pole, silver, illuminated (blue), 16 A/250 V, mounting Ø 22 mm, IP65, 3-101-018
Unit Price (€ / pc.)
33.9864 € *
Available: 0 pcs.
Leadtime: 9 Weeks **
Metal switch, 3-101-018, SCHURTER
Features
- Assembly by mounting with nut and subsequent clipping of the switching element
- Equipped with flat-pin plugs to permit fast connection
- High-quality stainless steel
Applications
- For use in harsh environments
Technical specifications
| Connection | quick connection | |
| Design | round | |
| Printed | No | |
| illuminated | Yes | |
| Installation diameter | 22 mm | |
| Actuator colour | silver | |
| Farbe der Beleuchtung | blue | |
| contact surface | silver-plated | |
| Pin number | 2 pole | |
| Latching switching function | latching | |
| Breaking capacity | 16 A/250 V | |
| Protection class | IP65 | |
| Vandal-proof | Yes |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85365011 |
| Original Packaging | Carton with 10 pieces |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
