6051.2003 | SCHURTER

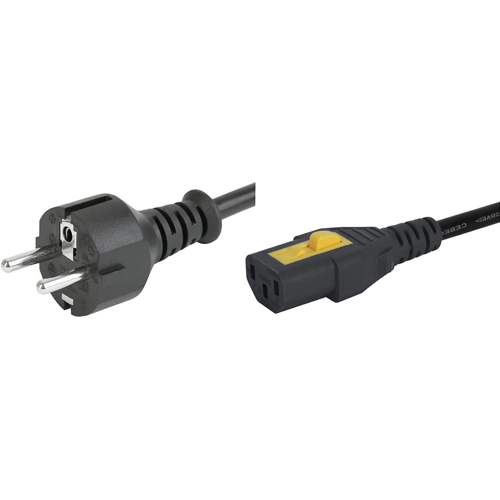

Power cord, Europe, Plug Type E + F, straight on C13-connector, straight, H05VV-F3G1.0mm², black, 2 m
Active
Product by SCHURTER at Bürklin Elektronik
Appliance power cables with V-Lock system, type Schurter 6051.2003.
Suitable for equipment of safety class I to IEC 61140, one end with straight Schuko-style plug to CEE (7) VII, opposing end with IEC cord connector C13 to IEC 60320, IEC 60320-1, UL 498, C22.2 no. 42; Cable type: H05VV-F3G1.00 mm². Rated voltage: 250 VAC. Rated current: 10 A. Operating temperatures: –25 to +70 °C.
Technical attributes (type, color, length): 6051.2003, black, 2.0 m
| Connection (1) | Plug Type E + F, straight | |
| Connection (2) | C13-connector, straight | |
| Version | Power cord | |
| Colour | black | |
| Cable type | H05VV-F3G1.0mm² | |
| Cable length | 2 m | |
| Country code | Europe | |
| Cable cross-section | 1.0 mm² | |
| Rated current | 10 A | |
| Standard connection 1 | CEE (7) VII | |
| Standard connection 2 | IEC 60320 |
| Country of origin | CN |
| Customs tariff number | 85366990 |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
