1241.3011 | SCHURTER
Piezo switch, On-Off, mounting Ø 27 mm, illuminable, red/green, aluminum, IP67, 1241.3011
Unit Price (€ / pc.)
76.2790 € *
Available: 18 pcs.
Total Price:
76.28 € *
Price list
Quantity
Price per unit*
1 pcs.
76.2790 €
10 pcs.
67.1279 €
20 pcs.
65.2953 €
40 pcs.
63.4746 €
160 pcs.
59.8094 €
*incl. VAT plus shipping costs
Subject to prior sale

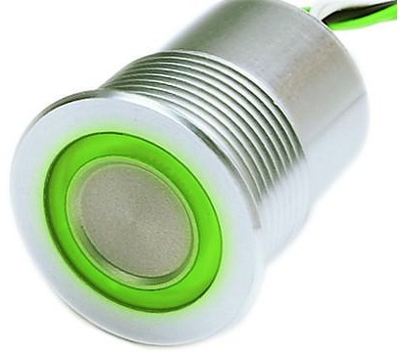

Piezo switch, 1241.3011, SCHURTER
Piezo switch with aluminum housing material, high reliability and long lifetime with more than 20 mill. actuations. It can be used in harsh environments, both indoors and outdoors.
Technical specifications
| Switching Voltage (AC) | 42 V | |
| Actuator | round | |
| Installation diameter | 27 mm | |
| Degree of protection (IP) | IP67 | |
| switching current | 100 mA | |
| Farbe der Beleuchtung | red/green | |
| Switching Voltage (DC) | 60 V | |
| Shell Material | aluminum | |
| Connection | stranded wires | |
| Latching switching function | On-Off | |
| can be illuminated | Yes | |
| Color of body | silver |
Download
Logistics
| Country of origin | CH |
| Customs tariff number | 85365011 |
| MSL | MSL 1 |
| Original Packaging | Carton with 10 pieces |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
