1241.3010 | SCHURTER

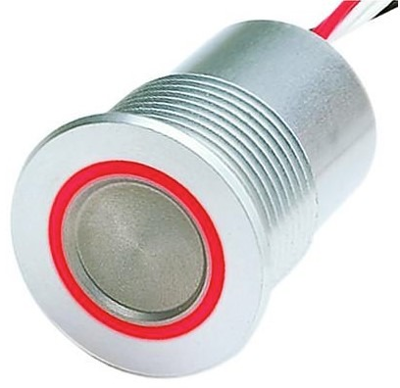

Piezo switch, On-Off, mounting Ø 24 mm, illuminated, red/green, aluminum, IP67, 1241.3010
Unit Price (€ / pc.)
63.2604 € *
Standard delivery time from the manufacturer is: 8 Weeks
Piezo switch, 1241.3010, SCHURTER
Piezo switch with aluminum housing material, high reliability and long lifetime with more than 20 mill. actuations. It can be used in harsh environments, both indoors and outdoors.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Color of body | silver | |
| Farbe der Beleuchtung | red/green | |
| Actuator | round | |
| Shell Material | aluminum | |
| Installation diameter | 24 mm | |
| Latching switching function | On-Off | |
| Degree of protection (IP) | IP67 | |
| illuminated | Yes | |
| Switching Voltage (DC) | 60 V | |
| switching current | 100 mA | |
| Connection | stranded wires | |
| Switching Voltage (AC) | 42 V |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85365011 |
| MSL | MSL 1 |
| Country of origin | CH |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
