8020.5015 | SCHURTER

Microfuse 6.3 x 32 mm, 2.5 A, T, 400 V (DC), 500 V (AC), 1.5 kA breaking capacity, 8020.5015

Order No.: 43G808
EAN: 4099889089011
MPN:
8020.5015
Series: SHT 6.3x32
8020.5015 SCHURTER Micro Fuses

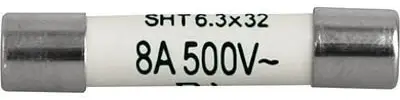

Image may differ
Unit Price (€ / pc.)
0.3927 € *
Standard delivery time from the manufacturer is: 14 Weeks
Total Price:
0.39 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
0.3927 €

Micro fuse, 8020.5015, SCHURTER

The 8020.5015 is a time-lag cartridge fuse that allows for a temporary current surge without going above the fuse's current rating. Because of this time delay fuses are most commonly used to protect motor circuits.

Features

  • Material tube ceramic
  • Material endcaps copper alloy nickel-plated
  • Time-lag
  • High breaking capacity

Applications

  • Single-phase application
  • DC application
  • Photovoltaic
  • Frequency converter
  • Power electronics
Technical specifications
Filter Property Value
Rated current 2.5 A
Design 6.3 x 32 mm
Version microfuse
Rated voltage (AC) 500 V
Enclosure ceramic tube
Tripping characteristics T
diameter 6.35 mm
Rated voltage (DC) 400 V
Breaking capacity 1.5 kA
Length 31.8 mm
Logistics
Property Value
Country of origin CN
Original Packaging Carton with 10 pieces
Customs tariff number 85361010
Compliance
Property Value
SVHC free Yes
Date of RoHS guidelines 3/31/15
RoHS conform Yes
