8020.0607.H | SCHURTER

Microfuses 6.3 x 32 mm, 30 A, T, 100 V (DC), 250 V (AC), 10 kA breaking capacity, 8020.0607.H

Order No.: 59P0580
EAN: 4099891556860
MPN:
8020.0607.H
Series: SUT-H 6.3x32
SCHURTER
default L
front L
Image may differ

As a private customer, you can buy this item as soon as we have it back in stock.

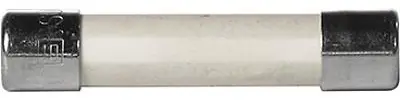

Fuse 6.3 x 32 mm, 8020.0607.H, SCHURTER

Robust 6.3x32 fuse for high power and inrush current requirements.

Technical specifications
Version microfuses
Tripping characteristics T
Breaking capacity 10 kA

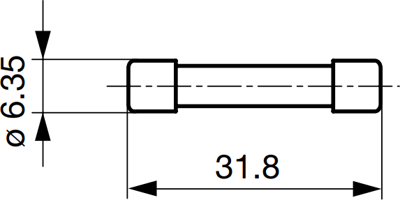

Design 6.3 x 32 mm
diameter 6.35 mm
Enclosure ceramic tube
Length 31.8 mm
Rated voltage (AC) 250 V
Rated voltage (DC) 100 V
Rated current 30 A
Logistics
Original Packaging Carton with 10 pieces
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
