8020.0606.H | SCHURTER
Microfuse 6.3 x 32 mm, 25 A, T, 100 V (DC), 250 V (AC), 10 kA breaking capacity, 8020.0606.H
Unit Price (€ / pc.)
1.2019 € *
Standard delivery time from the manufacturer is: 14 Weeks
Total Price:
1.20 € *
Price list
Quantity
Price per unit*
1 pcs.
1.2019 €
10 pcs.
1.1067 €
50 pcs.
1.0115 €
100 pcs.
0.8925 €
*incl. VAT plus shipping costs
Subject to prior sale

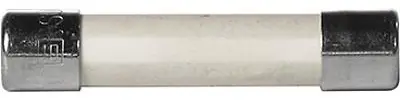

Fuse 6.3 x 32 mm, 8020.0606.H, SCHURTER
Robust 6.3x32 fuse for high power and inrush current requirements.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Rated current | 25 A | |

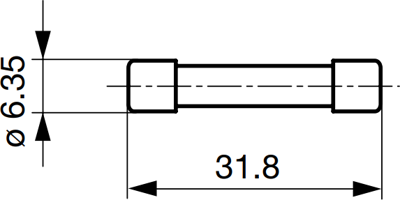

| Design | 6.3 x 32 mm | |
| Version | microfuse | |
| Rated voltage (AC) | 250 V | |
| Enclosure | ceramic tube | |
| Tripping characteristics | T | |
| diameter | 6.35 mm | |
| Rated voltage (DC) | 100 V | |
| Breaking capacity | 10 kA | |
| Length | 31.8 mm |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CN |
| Original Packaging | Carton with 10 pieces |
| Customs tariff number | 85361050 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
