7010.9970.63 | SCHURTER
Microfuse 7 x 2 mm, 8 A, T, 65 V (DC), 65 V (AC), 150 A breaking capacity, 7010.9970.63
Unit Price (€ / pc.)
0.5712 € *
Available: 0 pcs.
Leadtime: 19 Weeks **

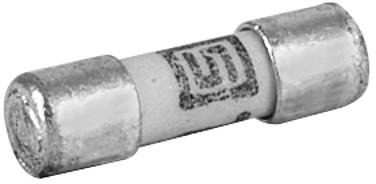

Micro fuse, 7010.9970.63, SCHURTER
The 7010.9970.63 is a SMT time-lag fuse that allows for a temporary current surge without going above the fuse's current rating. Because of this time delay fuses are most commonly used to protect motor circuits.
Features
- Material ceramic tube
- Material endcaps copper alloy tin-plated
- Suitable for reflow and wave soldering
- Low breaking capacity
Applications
- Directly solderable on printed circuit boards
- Telecom
- Household appliances
Technical specifications
| Rated voltage (DC) | 65 V | |
| Enclosure | ceramic tube | |
| Rated current | 8 A | |
| diameter | 2 mm | |
| Tripping characteristics | T | |
| Length | 7 mm | |
| Breaking capacity | 150 A | |
| Rated voltage (AC) | 65 V | |
| Version | microfuse | |
| Design | 7 x 2 mm |
Download
Logistics
| Country of origin | FR |
| Customs tariff number | 85361010 |
| MSL | MSL 1 |
| Original Packaging | Blister with 100 pieces |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
