7010.9890.63 | SCHURTER
Microfuses 7 x 2 mm, 7 A, F, 125 V (DC), 125 V (AC), 300 A breaking capacity, 7010.9890.63
Unit Price (€ / pc.)
0.6664 € *
Available: 344 pcs.
Next delivery: 500 pcs. on 2024-07-08
Leadtime: 1 Week **
Total Price:
6.66 € *
Price list
Quantity
Price per unit*
10 pcs.
0.6664 €
50 pcs.
0.5831 €
100 pcs.
0.5236 €
500 pcs.
0.4760 €
1000 pcs.
0.4403 €
*incl. VAT plus shipping costs
**Subject to prior sale

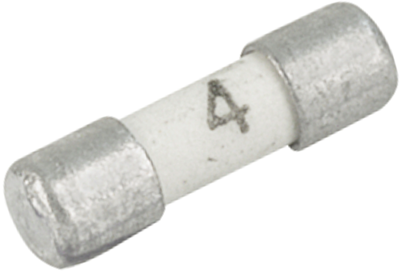

Micro fuse, 7010.9890.63,SCHURTER
The 7010.9890.63 is a quick-acting surface mount fuse with that is designed to protect less sensitive components and is also used to protect cabling from melting or catching fire when an overload occurs.
Features
- Material ceramic tube
- Material terminals copper alloy tin-plated
- High breaking capacity
- PCB or SMT mountable
Applications
- Telecom
- Household appliances
Technical specifications
| Version | microfuses | |
| Tripping characteristics | F | |
| Breaking capacity | 300 A | |
| Design | 7 x 2 mm | |
| diameter | 2 mm | |
| Enclosure | ceramic tube | |
| Length | 7 mm | |
| Rated voltage (AC) | 125 V | |
| Rated voltage (DC) | 125 V | |
| Rated current | 7 A |
Download
Logistics
| Country of origin | FR |
| Customs tariff number | 85361010 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Lead |
