7010.3460 | SCHURTER
Microfuse 5 x 20 mm, 3.15 A, F, 125 V (AC), 300 A breaking capacity, 7010.3460
Unit Price (€ / pc.)
0.4284 € *
Standard delivery time from the manufacturer is: 12 Weeks

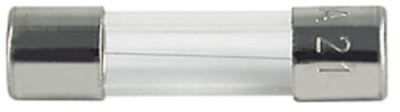

Micro fuse, 7010.3460, SCHURTER
The 7010.3460 is a quick-acting miniature fuse that is designed to protect less sensitive components and is also used to protect cabling from melting or catching fire when an overload occurs.
Features
- Material glass tube
- Material endcaps copper alloy nickel-plated
- Suitable for mounting in fuseholder / clip
- Low breaking capacity
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Tripping characteristics | F | |
| Design | 5 x 20 mm | |
| Breaking capacity | 300 A | |
| Version | microfuse | |
| Rated voltage (AC) | 125 V | |
| Rated current | 3.15 A | |
| Length | 20 mm | |
| diameter | 5 mm | |
| Enclosure | glass tube |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | IN |
| Customs tariff number | 85361010 |
| MSL | MSL 1 |
| Original Packaging | Carton with 10 pieces |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
