7010.3250 | SCHURTER
Microfuse 5 x 20 mm, 250 mA, F, 220 V (AC), 60 A breaking capacity, 7010.3250
Unit Price (€ / pc.)
0.8211 € *
Standard delivery time from the manufacturer is: 19 Weeks

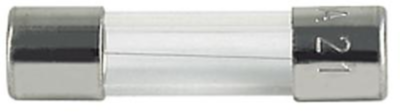

Micro fuse, 7010.3250, SCHURTER
The 7010.3250 is a quick-acting miniature fuse that is designed to protect less sensitive components and is also used to protect cabling from melting or catching fire when an overload occurs.
Features
- Material glass tube
- Material endcaps copper alloy nickel-plated
- Suitable for mounting in fuseholder / clip
- Low breaking capacity
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Rated current | 250 mA | |
| Design | 5 x 20 mm | |
| Version | microfuse | |
| Rated voltage (AC) | 220 V | |
| Enclosure | glass tube | |
| Tripping characteristics | F | |
| diameter | 5 mm | |
| Breaking capacity | 60 A | |
| Length | 20 mm |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CH |
| Original Packaging | Carton with 10 pieces |
| Customs tariff number | 85361010 |
| MSL | MSL 1 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
