0034.2513 | SCHURTER

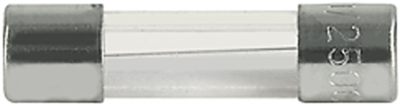

Name: Microfuses 5 x 20 mm, 500 mA, M, 125 V (DC), 250 V (AC), 80 A breaking capacity, 0034.2513
Brand: SCHURTER
SKU: 43G504
Price: 0.38 EUR
Availability: OutOfStock

Microfuses 5 x 20 mm, 500 mA, M, 125 V (DC), 250 V (AC), 80 A breaking capacity, 0034.2513

Order No.: 43G504

EAN: 4099889088465

MPN:

0034.2513

Series: FSM 5x20

Image may differ

Key Specification:

Version microfuses

Design 5 x 20 mm

Enclosure glass tube

Rated current 500 mA

Tripping characteristics M

Show 16 variants

Download Datasheet Technical specifications

Unit Price (€ / pc.)

0.3808 € *

Available: 0 pcs.

Leadtime: 17 Weeks **

Add to Cart

Total Price:

0.38 € *

*incl. VAT plus shipping costs

**Subject to prior sale

Description

Micro fuse, 0034.2513, SCHURTER

The 0034.2513 is a medium time-lag fuse that allows for a temporary current surge without going above the fuse's current rating. Because of this time delay fuses are most commonly used to protect motor circuits.

Features

Material tube glass
Material endcaps copper alloy nickel-plated
Medium-time-lag
Suitable for fuseholder/clips
High breaking capacity
Cartridge model

Download

Technical Data Sheet - EN Technical Data Sheet

Declaration of Conformity - EN Declaration of Conformity

Technical Data Sheet - DE Technical Data Sheet

Declaration of Conformity - DE Declaration of Conformity

Logistics

Country of origin	CH
Customs tariff number	85361010
Original Packaging	Carton with 10 pieces

Compliance

RoHS conform	Yes
Date of RoHS guidelines	3/31/15
SVHC free	Yes
